Pin terminal PCB capacior for high-frequency / high-current applications
Technical data
| Operating temperature range | Max.Operating temperature.,Top,max: + 105℃Upper category temperature: +85℃Lower category temperature: -40℃ |
| capacitance range |
8～150μF |
| Rated voltage |
450V.DC～1300V.DC |
| Cap.tol |
±5%(J) ;±10%(K) |
| Withstand voltage |
1.5Un DC/60S |
| Over Voltage |
1.1Un(30% of on-load-dur.) |
|
1.15Un(30min/day) |
|
|
1.2Un(5min/day) |
|
|
1.3Un(1min/day) |
|
|
1.5Un(100ms every time,1000times during the lifetime) |
|
| Dissipation factor |
tgδ≤0.0015 f=100Hz |
| Insulation resistance | RS*C≥10000S (at 20℃ 100V.DC) |
| Flame retardation |
UL94V-0 |
| Reference standard |
IEC 61071 ; |
Feature
1. Plastic shell encapsulation, dry resin infusion;
2. Leads with tinned copper wire, small size, easy installation;
3. Low ESL and ESR;
4. High pulse Current.
Like other CRE products , the series capacitor have UL certificate and 100% burn-in tested.
Application
1. Widely used in DC-Link circuit for filtering energy storage;
2. Can replace electrolytic capacitors, better performance and longer life.
3. Pv inverter, wind power converter; all kinds of frequency converter and inverter power supply;
Pure electric and hybrid cars; Charging pile, UPS, Etc.

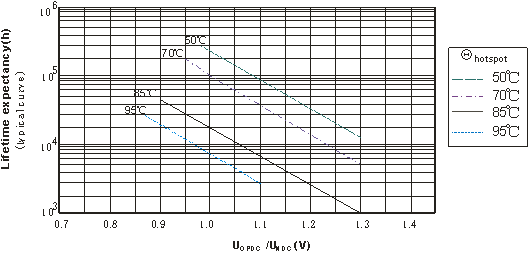

Life expectancy
Outline drawing
