CRE presents its new damping and absorption capacitors.

They are designed for voltages of 0.5kV AC-10kV AC and cover a capacitance range of 0.05µF to 50µF. The new capacitors are designed for a temperature range of -40°C to 55°C.

Typical areas of application include rectifiers, SVCs, locomotive power supplies, etc.

Main fields of application

    ●Widely used for switching and protection, filtering and energy storage of semiconductors installed in electrical, electric and electronic equipment; for high-voltage DC transmission converter valves, etc.
    ●Widely used in electric power system, electronic industry and urban rail transit system, etc.

Main features

    ●Able to withstand the impact of instantaneous high currents and high voltages, with strong resistance to inrush currents and no decay in capacity.
    ●Good heat dissipation performance, good low temperature resistance;
    ●Beautiful appearance, small volume, light weight, long life, easy installation, etc.

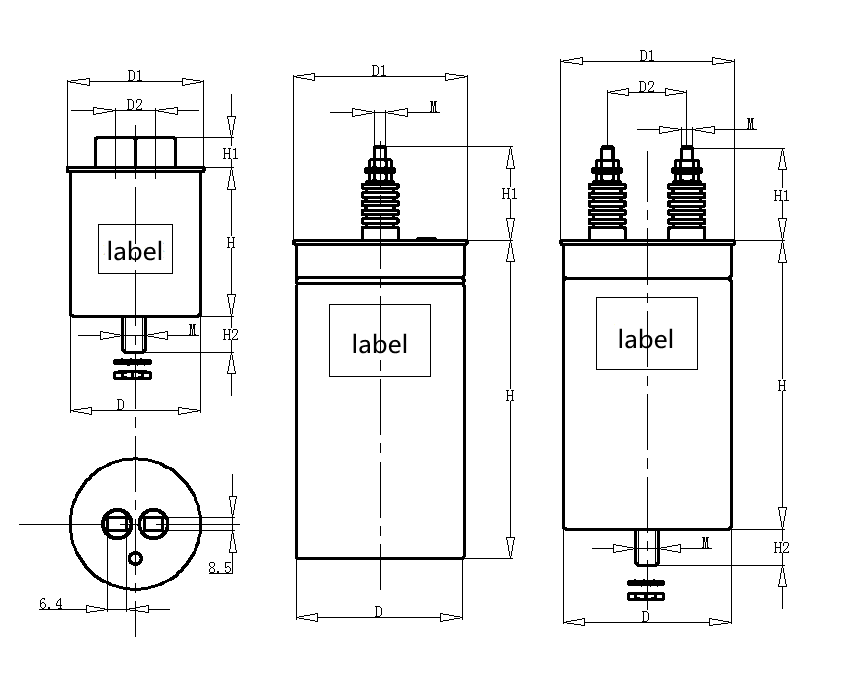

Product structure

    ●Process: products using non-sensitive roll technology, high vacuum impregnation process
    ●Solid medium: polypropylene film (PP)
    ●Liquid medium filler: benzyltoluene or PEPE, PCB free
    ●Electrodes: Aluminium foil for electronic and power capacitors
    ●Case: Frosted and oxidised cylindrical aluminium case
    ●Lead-in pole: PBT polymer insulator
    ●Mounting bolts: M8/M12/M16

CRE has a long history of cooperation with domestic and international universities and research institutes to provide film capacitor solutions for the application of various advanced technologies. The technical staff have over 20 years of experience in the field, with excellent research and development skills. In the future, we will develop and manufacture more and better film capacitors for various fields.
