Newly Designed Power Electronic Capacitor with Self-healing Capability (DKMJ-S)

Short Description:

Capacitor Model: DKMJ-S

Features:

1. Copper nuts/screws electrodes, easy installation

2. Metallic packaging filled with dry resin

3. Large capacitance in small physical size

4. Resistance to high voltage with self-healing capability

5. Capability of operating under high ripple current

6. Longer Life Expectance and Better Performance Compared to Electrolytic Capacitors

Applications:

1. Energy Storage and Filtering in DC-Link Circuit

2. VSC-HVDC Applications based on IGBT (Voltage Sourced Converter) Transmitting Power Underground over Long Distance

3. Shore Power Supplies to Islands

4. Photovoltaic Inverter (PV), Wind Power Converter

5. Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs)

6. All Kinds of Frequency Converters and Inverters

7. SVG, SVC Energy Management Devices

Send email to us Download as PDF

Product Detail

Product Tags

Technical data

Operating temperature range	Max.Operating temperature.,Top,max: + 70℃Upper category temperature: +60℃Lower category temperature: -40℃
capacitance range	100μF～20000μF
Un/ Rated voltage Un	600V.DC～4000V.DC
Cap.tol	±5%(J) ;±10%(K)
Withstand voltage	Vt-t	1.5Un DC/60S
	Vt-c	1000+2×Un/√2 （V.AC） 60S(min 3000 V.AC)
Over Voltage	1.1Un(30% of on-load-dur.)
	1.15Un(30min/day)
	1.2Un(5min/day)
	1.3Un(1min/day)
	1.5Un(100ms every time,1000times during the lifetime)
Dissipation factor	tgδ≤0.003 f=100Hz
	tgδ0≤0.0002
ESL	＜150 nH
Flame retardation	UL94V-0
Maximum aititude	2000m
	When the altitude is above 2000m to below 5000m, it is necessary to consider the use of reduced amount.(for each increase of 1000m, the voltage and current will be reduced by 10%)
Life expectancy	100000h(Un; Θhotspot ≤70 °C )
Reference standard	IEC 61071 ;IEC 61881;

Feature

1. Metal shell encapsulation, dry resin infusion;

2. Copper nut/screw leads, easy installation;

3. Large capacity, small size;

4. Resistance to high voltage, with self-healing;

5. High ripple current, high dv / dt withstand capability.

Application

1. Railway traction;
2. Pv inverter;
3. wind power converter;
4. All kinds of frequency converter and inverter power supply;
5. Pure electric and hybrid cars;
6. SVG, SVC devices
7. other kinds of power quality management.

8. mining power converter

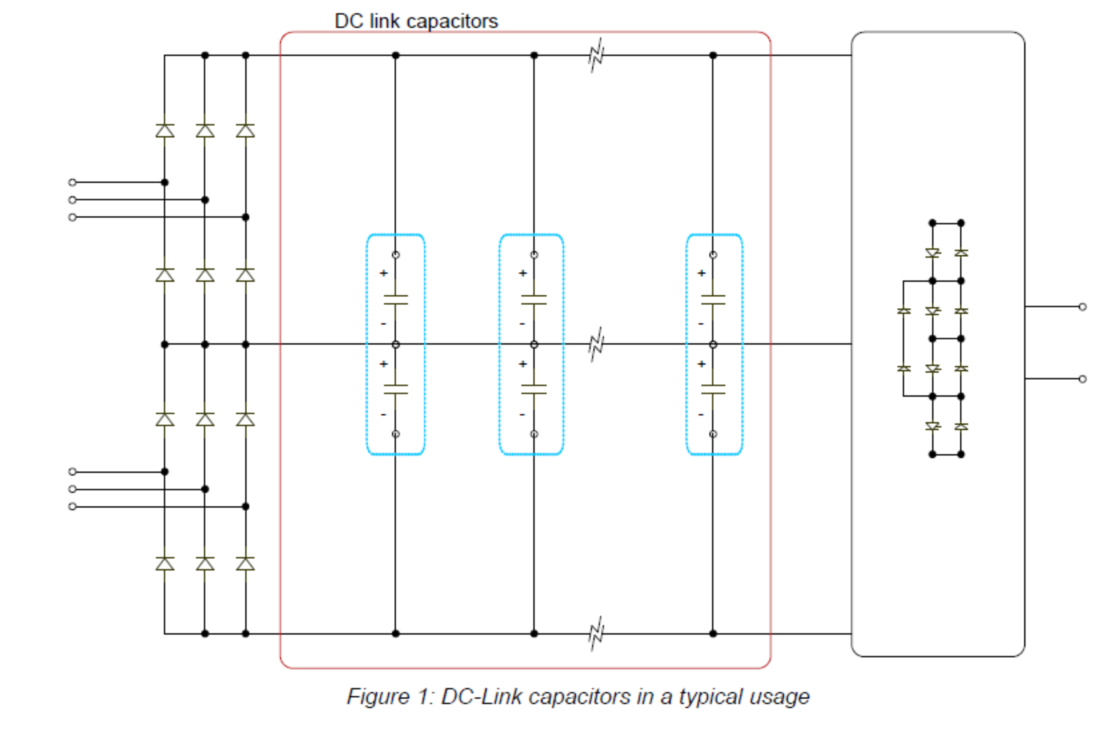

Typical circuit

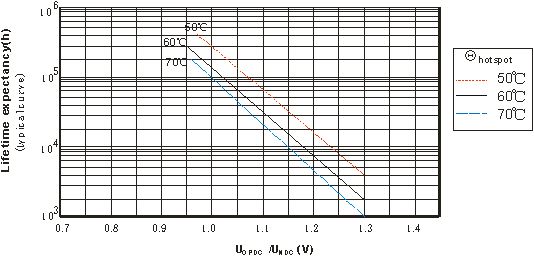

Life expectancy

Outline drawing

Voltage	Un 800V.DC Us 1200V Ur 200V
Cn (μF)	W (mm)	T (mm)	H (mm)	dv/dt (V/μS)	Ip (KA)	Irms(A)50℃@10KHz	ESR (mΩ) @1KHz	Rth (K/W)	Weight （Kg）
4000	340	125	190	5	20.0	120	1.1	0.9	17.6
8000	340	125	350	4	32.0	180	0.72	0.6	31.2
6000	420	125	245	5	30.0	150	0.95	0.7	26.4
10000	420	125	360	4	40.0	200	0.72	0.5	39.2
12000	420	235	245	4	48.0	250	0.9	0.3	49.6
20000	420	235	360	3	60.0	300	0.6	0.3	73.6

Voltage	Un 1200V.DC Us 1800V Ur 300V
Cn (μF)	W (mm)	T (mm)	H (mm)	dv/dt (V/μS)	Ip (KA)	Irms(A)50℃@10KHz	ESR (mΩ) @1KHz	Rth (K/W)	Weight （Kg）
2500	340	125	190	8	20.0	120	1.1	0.9	17.6
3300	340	125	245	8	26.4	150	0.95	0.7	22.4
5000	420	125	300	7	35.0	180	0.8	0.6	32.8
7500	420	125	430	5.5	41.3	200	0.66	0.6	44.8
5000	340	235	190	8	40.0	200	1.1	0.3	32.8
10000	340	235	350	6	60.0	250	0.8	0.3	58.4
5000	420	235	175	8	40.0	200	1	0.4	36
7500	420	235	245	7	52.5	250	0.9	0.3	49.6
10000	420	235	300	7	70.0	250	0.8	0.3	61.6
15000	420	235	430	5	75.0	300	0.6	0.3	84

Voltage	Un 1500V.DC Us 2250V Ur 450V
Cn (μF)	W (mm)	T (mm)	H (mm)	dv/dt (V/μS)	Ip (KA)	Irms(A)50℃@10KHz	ESR (mΩ) @1KHz	Rth (K/W)	Weight （Kg）
1200	340	125	190	10	12.0	120	1.1	0.9	17.6
3000	340	125	420	8	24.0	180	0.66	0.7	37.6
2000	420	125	245	10	20.0	150	0.95	0.7	26.4
4000	420	125	430	8	32.0	200	0.66	0.6	44.8
5000	340	235	350	8	40.0	250	0.8	0.3	58.4
4000	420	235	245	10	40.0	250	0.9	0.3	49.6
8000	420	235	430	8	64.0	300	0.6	0.3	84

Voltage	Un 2000V.DC Us 3000V Ur 600V
Cn (μF)	W (mm)	T (mm)	H (mm)	dv/dt (V/μS)	Ip (KA)	Irms(A)50℃@10KHz	ESR (mΩ) @1KHz	Rth (K/W)	Weight （Kg）
1000	340	125	245	12	12.0	150	0.95	0.7	22.4
1500	340	125	350	10	15.0	180	0.72	0.6	31.2
2000	420	125	360	10	20.0	200	0.72	0.5	39.2
2400	420	125	430	9	21.6	200	0.66	0.6	44.8
3200	340	235	350	10	32.0	250	0.8	0.3	46.4
4000	420	235	360	10	40.0	280	0.7	0.3	58.4
4800	420	235	430	9	43.2	300	0.6	0.3	67.2

Voltage	Un 2200V.DC Us 3300V Ur 600V
Cn (μF)	W (mm)	T (mm)	H (mm)	dv/dt (V/μS)	Ip (KA)	Irms (A)max	ESR (mΩ)	Rth (K/W)	Weight （Kg）
2000	420	235	245	12	24	150	0.9	0.740740741	40
2750	420	235	300	10	27.5	200	0.8	0.46875	49.6
3500	420	235	360	10	35	200	0.7	0.535714286	58.4

Voltage	Un 3000V.DC Us 4500V Ur 800V
Cn (μF)	W (mm)	T (mm)	H (mm)	dv/dt (V/μS)	Ip (KA)	Irms (A)max	ESR (mΩ)	Rth (K/W)	Weight （Kg）
1050	420	235	245	20	21	150	0.9	0.740740741	40
1400	420	235	300	15	21	200	0.8	0.46875	49.6
1800	420	235	360	15	27	200	0.7	0.535714286	58.4

Voltage	Un 4000V.DC Us 6000V Ur 1000V
Cn (μF)	W (mm)	T (mm)	H (mm)	dv/dt (V/μS)	Ip (KA)	Irms (A)max	ESR (mΩ)	Rth (K/W)	Weight （Kg）
600	420	235	245	20	12	150	0.9	0.740740741	40
800	420	235	300	20	16	200	0.8	0.46875	49.6
1000	420	235	360	20	20	200	0.7	0.535714286	58.4

Voltage	Un 2800V.DC Us 4200V Ur 800V
Cn (μF)	W (mm)	T (mm)	H (mm)	dv/dt (V/μS)	Ip (KA)	Irms(A)50℃@10KHz	ESR (mΩ) @1KHz	Rth (K/W)	Weight （Kg）
2×1000	560	190	310	20	2×20	2×350	1	0.2	60

Voltage	Un 3200V.DC Us 4800V Ur 900V
Cn (μF)	W (mm)	T (mm)	H (mm)	dv/dt (V/μS)	Ip (KA)	Irms(A)50℃@10KHz	ESR (mΩ) @1KHz	Rth (K/W)	Weight （Kg）
2×1200	340	175	950	15	2×18	2×200	1.0	0.5	95
