Low-inductance AC capacitor for high power traction motor drive inverters
Technical data
|
Operating temperature range |
Max Operating temperature: + 85℃; Upper category temperature: +55℃; Lower category temperature: -40℃ | |
|
capacitance range |
3×40μF～3×500μF |
|
|
Un/ Rated voltage Un |
400V.AC/50Hz～1140V.DC/50Hz |
|
|
Cap.tol |
±5%(J) |
|
|
Withstand voltage |
Vt-t |
2.15Un /10S |
|
Vt-c |
1000+2×Un V.AC 60S(min3000V.AC) |
|
|
Over Voltage |
1.1Un(30% of on-load-dur.) |
|
|
1.15Un(30min/day) |
||
|
1.2Un(5min/day) |
||
|
1.3Un(1min/day) |
||
|
1.5Un(100ms every time,1000times during the lifetime) |
||
|
Dissipation factor |
tgδ≤0.002 f=100Hz |
|
| tgδ0≤0.0002 | ||
|
ESL |
＜100 nH |
|
|
Flame retardation |
UL94V-0 |
|
|
Maximum aititude |
2000m |
|
|
When the altitude is above 2000m to below 5000m, it is necessary to consider the use of a reduced amount. (for each increase of 1000m, the voltage and current will be reduced by 10%) |
||
|
Life expectancy |
100000h(Un; Θhotspot≤55°C) |
|
|
Reference standard |
IEC 61071 ;IEC 60831; |
|
Feature
1. Metal case package, Sealed with resin;
2. High voltage power system application;
3. High power circuit;
4. Resistance to high voltage, with self-healing;
5. High ripple current, high dv / dt withstand capability.
Function
In the output filter of a DC power supply, the job of the capacitor is to maintain a constant DC value by removing as much power ripple as possible.
All AC-DC converters, whether they are linear supplies or have some kind of switching element to them, require a mechanism to take the varying power on the AC side and produce a constant power on the DC side.

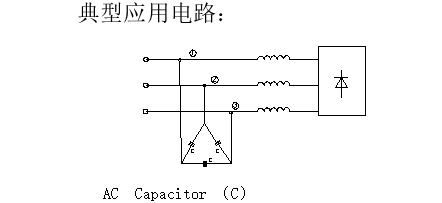

Typical circuit
Life expectancy
Specification table
| Voltage | Un 400V.AC 50Hz | |||||||||
| Cn (μF) | W (mm) | T (mm) | H (mm) | dv/dt (V/μS) | Ip (KA) | Irms (A) 50℃ | ESR 1KHz (mΩ) | Rth (K/W) | weight （Kg） | |
| 3× | 200 | 225 | 120 | 170 | 50 | 10.0 | 3×70 | 3×0.95 | 1.1 | 7 |
| 3× | 300 | 225 | 120 | 235 | 40 | 12.0 | 3×90 | 3×0.85 | 0.8 | 9 |
| 3× | 400 | 295 | 120 | 235 | 35 | 14.0 | 3×120 | 3×0.80 | 0.7 | 12 |
| 3× | 500 | 365 | 120 | 235 | 30 | 15.0 | 3×160 | 3×0.78 | 0.6 | 15 |
| Voltage | Un 500V.AC 50Hz | |||||||||
| Cn (μF) | W (mm) | T (mm) | H (mm) | dv/dt (V/μS) | Ip (KA) | Irms (A) 50℃ | ESR 1KHz (mΩ) | Rth (K/W) | weight （Kg） | |
| 3× | 120 | 225 | 120 | 170 | 60 | 7.2 | 3×50 | 3×1.2 | 1.1 | 7 |
| 3× | 180 | 225 | 120 | 235 | 50 | 9.0 | 3×70 | 3×1.05 | 0.8 | 9 |
| 3× | 240 | 295 | 120 | 235 | 45 | 10.8 | 3×100 | 3×1.0 | 0.7 | 12 |
| 3× | 300 | 365 | 120 | 235 | 40 | 12.0 | 3×120 | 3×0.9 | 0.6 | 15 |
| Voltage | Un 690V.AC 50Hz | |||||||||
| Cn (μF) | W (mm) | T (mm) | H (mm) | dv/dt (V/μS) | Ip (KA) | Irms (A) 50℃ | ESR 1KHz (mΩ) | Rth (K/W) | weight （Kg） | |
| 3× | 50 | 225 | 120 | 170 | 100 | 5.0 | 3×50 | 3×2.3 | 1.1 | 7 |
| 3× | 75 | 225 | 120 | 235 | 90 | 6.8 | 3×70 | 3×2.1 | 0.8 | 9 |
| 3× | 100 | 295 | 120 | 235 | 80 | 8.0 | 3×100 | 3×1.6 | 0.7 | 12 |
| 3× | 125 | 365 | 120 | 235 | 80 | 10.0 | 3×120 | 3×1.3 | 0.6 | 15 |
| Voltage | Un 1140V.AC 50Hz | |||||||||
| Cn (μF) | W (mm) | T (mm) | H (mm) | dv/dt (V/μS) | Ip (KA) | Irms (A) 50℃ | ESR 1KHz (mΩ) | Rth (K/W) | weight （Kg） | |
| 3× | 42 | 340 | 175 | 200 | 120 | 5.0 | 3×80 | 3×3.3 | 0.6 | 17.3 |
| 3× | 60 | 420 | 175 | 250 | 100 | 6.0 | 3×100 | 3×2.8 | 0.5 | 26 |
