High Performance Capacitor for Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs) (DKMJ-AP)

Capacitor Model: DKMJ-AP Series

Features:

1. Copper Flat Electrodes

2. Plastic Packaging Sealed with Dry Resin

3. Large Capacitance in Small Physical Size

4. Easy Installation

5. Resistance to High Voltage

6. Self-healing Capabilities

7. Low ESL and ESR

8. Capable of Operating under High Ripple Current

Applications:

Specialized for Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs)

Product Detail

Operating temperature range	-40℃~105℃
Storage temperature range	-40℃~105℃
Un/ Rated voltage	450V.DC
Cn/ Rated capaciance	580μF
Cap.tol	±10%(K)
Withstand voltage	Vt-t	1.5Un/10S(20℃±5℃)
	Vt-c	3000V.AC/10S(50Hz，20℃±5℃)
Dissipation factor	tgδ≤0.001 f=100Hz
	tgδ0≤0.0002
Insulation resistance	Rs×C≥10000S (at20℃ 100V.DC 60s)
ESR	≤0.6mΩ(10KHz)
Ls	≤15nH
Rth	3.5K/W
Max. current Irms	80A (70℃)
Non-recurrent surge voltage (Us)	675V.DC
Maximum peak current (Î)	5.8KA
Maximum surge current(Is)	11.6KA
Filling material	Dry, polypropylene
Failure quota	≤50Fit

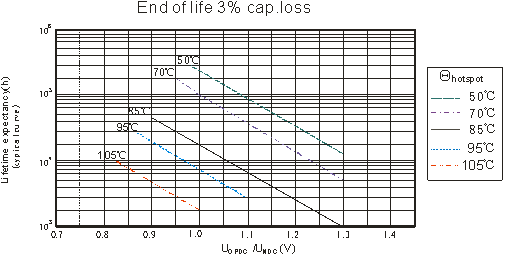

Life expectancy	100,000h
Reference standard	IEC 61071 ; AEC Q 200D-2010
Weight	≈1.0kg
Dimension	164mm×115mm×45mm
