Good quality AC film power capacitor

Short Description:

Feature:

1:Mylar tape package, Sealed with resin;
2:Copper nut leads,small size,easy installation ;

3:Large capacity, small size;

4:Resistance to high voltage, with self-healing;

5: High ripple current, high dv / dt withstand capability.

Send email to us Download as PDF

Product Detail

Product Tags

Technical data

Operating temperature range	Max.Operating temperature.,Top,max: +85℃Upper category temperature: +70℃Lower category temperature: -40℃
capacitance range	5μF～50μF
Un/ Rated voltage Un	330V.AC/50Hz～690V.AC/50Hz
Cap.tol	±5%(J) ;
Withstand voltage	Vt-t	2.15U_N/10S
	Vt-c	1000+2*U_N (min2000)V.AC) 60S
Over Voltage	1.1U_N(30% of on-load-dur.)
	1.15U_N(30min/day)
	1.2U_N(5min/day)
	1.3U_N(1min/day)
	1.5U_N(100ms every time,1000times during the lifetime)
Dissipation factor	tgδ≤0.002 f=1KHz
	tgδ0≤0.0002
Insulation resistance	RS*C≥5000S(at20℃ 100V.DC 60S )
Life expectancy	100000h(Un; Θhotspot≤55 °C)
Reference standard	IEC61071;IEC 60831;

Feature

1. Mylar tape package, Sealed with resin;
2. Copper nut leads,small size,easy installation ;
3. Large capacity, small size;
4. Resistance to high voltage, with self-healing;
5. High ripple current, high dv / dt withstand capability.

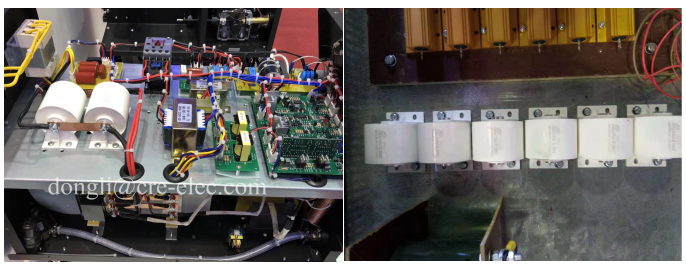

Installation case

Application

1. Widely used in power electronic equipment used for the AC filter.

2. In the high-power UPS, switching power supply, AC/DC converters and inverter (drives) and other equipment for the AC filter, harmonics and improve power factor control.

Life expectancy

mc3

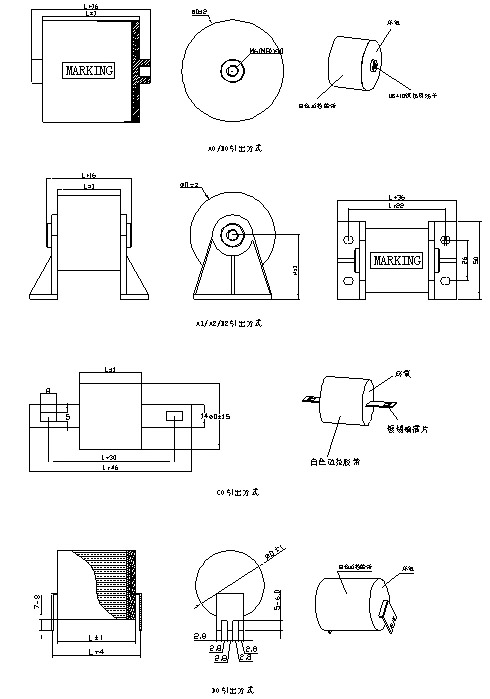

Outline drawing

Voltage	(Un=330V.AC)
Capacitance	φD (mm)	L(mm)	ESR @10KHz (mΩ))	ESL(nH)	dv/dt(V/μS)	Ipk(A)	Irms(40℃ @10KHz )
6.8	35	40	9.4	27	100	680	30
8	38	40	8.0	25	80	640	35
10	42	40	6.4	25	75	750	40
15	51	40	5.3	28	70	1050	48
20	59	40	4.0	23	65	1300	55
30	71	40	2.7	27	60	1800	68
40	74	50	2.0	26	55	2200	70
50	82	50	1.6	25	50	2500	75

Voltage	(Un=450V.AC)
Capacitance	φD (mm)	L(mm)	ESR @10KHz (mΩ))	ESL(nH)	dv/dt(V/μS)	Ipk(A)	Irms(40℃ @10KHz )
6.8	35	40	9.4	27	100	680	30
8	38	40	8.0	25	80	640	35
10	42	40	6.4	25	75	750	40
15	51	40	5.3	28	70	1050	48
20	59	40	4.0	23	65	1300	55
30	71	40	2.7	27	60	1800	68
40	74	50	2.0	26	55	2200	70
50	82	50	1.6	25	50	2500	75

Voltage	(Un=690V.AC)
Capacitance	φD (mm)	L(mm)	ESR @10KHz (mΩ))	ESL(nH)	dv/dt(V/μS)	Ipk(A)	Irms(40℃ @10KHz )
5	35	60	9.6	27	180	900	30
6.8	40	60	7.0	26	150	1020	35
8	44	60	7.0	25	120	960	38
10	49	60	6.4	26	110	1100	45
15	59	60	4.2	23	100	1500	55
20	68	60	3.2	25	90	1800	62
25	76	60	2.5	22	80	2000	70
30	83	60	2.1	23	80	2400	75
