Easy Installation Film Capacitor for Resonance

Short Description:

RMJ-P Series  Resonant capacitor

1. High pulse current rating

2. High operating frequency range

3. High insulation resistance

4. Very low ESR

5. High AC current rating


Product Detail

Product Tags

Application

● Widely used in power electronic devices in series/parallel resonant circuit.

● Welding,power supplies,induction heating equipment resonance occasions.

Technical data

Operating temperature range Max.Operating temperature,Top,max:+105℃
Upper category temperature:+85℃
Lower category temperature:-40℃
CN)/Capacitance range 1μF~8μF
(Uw)/Rated voltage 1200V.DC-2000V.DC
Cap.tol ±5%(J);±10%(K)
Withstand voltage 1.5Un /60s
Dissipation factor tgδ≤0.001 f=1kHz
Insulation resistance Rs×C≥5000s(at20℃ 100V.DC 60s)

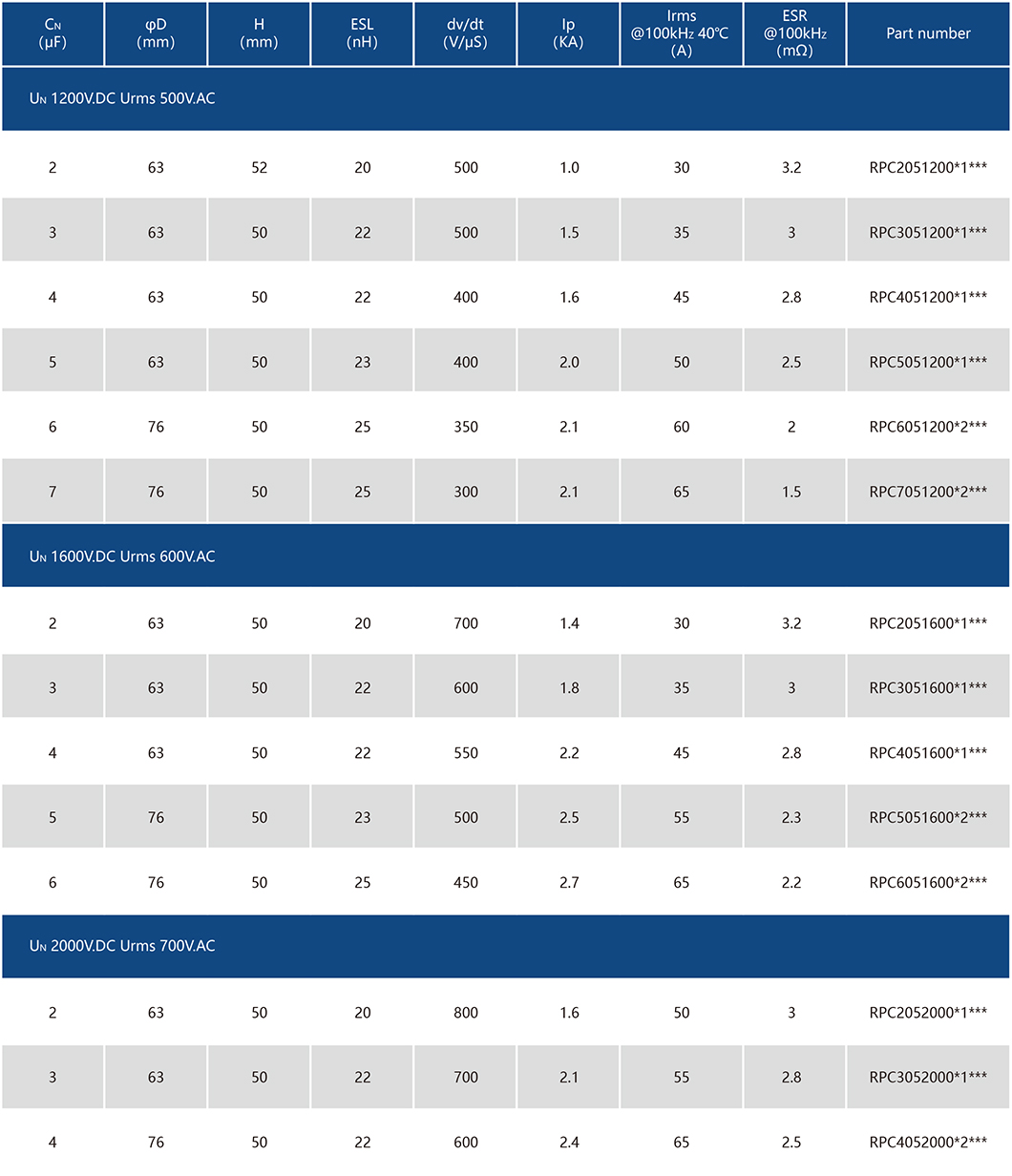

Withstand strike current See the specification sheet
Irms See the specification sheet
Life expectancy 100000h(Un;θhotspot ≤85℃)
Reference standard IEC61071

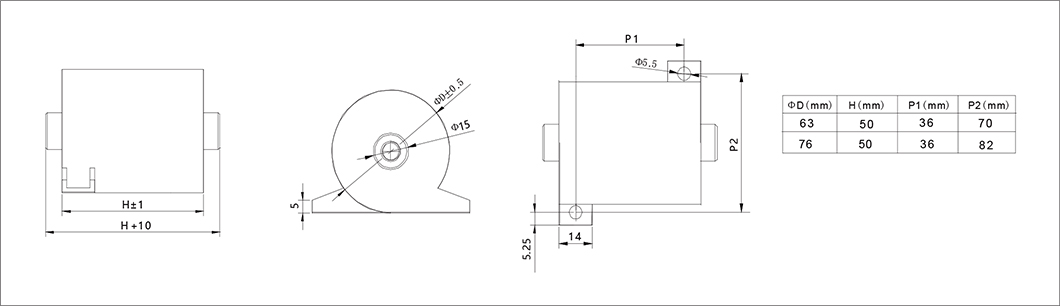

The contour map

外形

Part number system

Model Capacitance UN(DC) Cap.tol Dimension Lead   Internal
feature code
1 2 3 4 5 6 7 8 10 11 12 13 14 15
R P C 4 0 5 1 2 0 0 J 1 A 0
1          ~          3         位 :     型号代码/Model
4         N                                6        位:   标称容量/Nominal  Capacity
e.g.405=40×10⁵pF=4μF
7          N                                   10        位:   额定电压(直流)/Un(DC)
e.g.1200=1200V.DC
11       位:    容量偏差等级/Capacitance  Tolerance
±5%(J)±10%(K)
12        位:   尺寸代码/Dimension
1:63×50
2:76×50
13       位:    引出形式/Lead
A:M6×10  螺母引出/Screw   nut

B:M8×10  螺母引出/Screw   nut

14        N                                             15       位:   内部特征码/Internal feature code
RMJ-PC-01
