Damping Absorption Snubber Capacitor for SVC

Damping Absorption Snubber Capacitor for SVC Featured Image
  • Damping Absorption Snubber Capacitor for SVC
  • Damping Absorption Snubber Capacitor for SVC
  • Damping Absorption Snubber Capacitor for SVC
  • Damping Absorption Snubber Capacitor for SVC
  • Damping Absorption Snubber Capacitor for SVC
  • Damping Absorption Snubber Capacitor for SVC

Short Description:

Model: SMJ-MC series

CRE provides all kinds of  capacitors

1. Innovative damping absorption capacitors are designed and manufactured by CRE

2. CRE is the leader in film capacitor design and manufacturing.

3. If you require unique damping absorption capacitor specifications, head over to our design center for a customized capacitor.

Applications:

They’re primarily used to limit the rate of voltage rise in circuits that are
excessive, to protect the switching and protection of semiconductors in power
electronics; filtering and energy storage.
The main application areas are rectifiers, SVCs, locomotive power supplies, etc.




  • :
    • Download as PDF

    Product Detail

    Product Tags

    Application

    - Mainly used to limit the rising rate of excessive voltage in circuits to protect switching and protection of semiconductors in power electronics
    - Filtering and energy storage
    - The main application areas are rectifiers, SVCs, locomotive power supplies, etc.

    SMJ-MC图片
    外形图

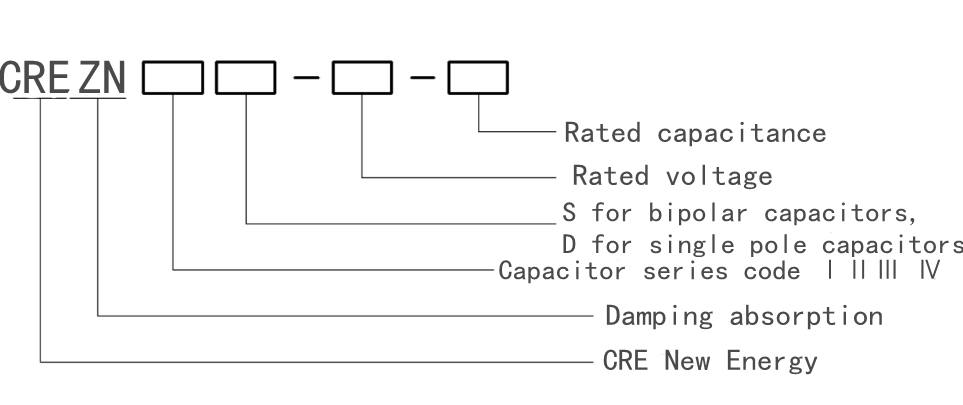

    Part number system

    damping absorption capacitor lable

    Specification table

    Capacity（µF）   IMAX（Arms）   Iˆ（kA） IS（kA） DimensionsD×H Bottombolts Model
    UN 1000V AC       UNDC 1700V DC        US 2500V       UBB 1500V AC     UBG 2400V AC
    0.1µF 10 0.2 1.2 50×55 M8 CREZN-1kVAC-0.1µF
    0.22µF 10 0.2 1.6 50×55 M8 CREZN-1kVAC-0.22µF
    0.33µF 10 0.2 1.6 50×55 M8 CREZN-1kVAC-0.33µF
    0.47µF 10 0.2 1.6 50×55 M8 CREZN-1kVAC-0.47µF
    0.5µF 10 0.2 1.6 50×55 M8 CREZN-1kVAC-0.5µF
    1µF 18 0.2 1.6 50×75 M8 CREZN-1kVAC-1µF
    2µF 18 0.3 2 50×75 M8 CREZN-1kVAC-2µF
    3µF 18 0.5 2.8 60×90 M12 CREZN-51kVAC-3µF
    4µF 18 0.7 3 60×122 M12 CREZN-1kVAC-4µF
    6µF 18 0.9 3.5 60×152 M12 CREZN-1kVAC-6µF
    10µF 18 1.2 4 76×152 M12 CREZNIIS-500VAC/1kVAC-10µF
    UN 1600V AC       UNDC 2500V DC        US 3800V       UBB 2400V AC     UBG 3300V AC
    0.1µF 10 0.2 1.2 50×55 M8 CREZN-1.6kVAC-0.1µF
    0.22µF 10 0.2 1.6 50×55 M8 CREZN-1.6kVAC-0.22µF
    0.33µF 10 0.2 1.6 50×75 M12 CREZN-1.6kVAC-0.33µF
    0.47µF 18 0.2 1.6 50×75 M12 CREZN-1.6kVAC-0.47µF
    0.5µF 18 0.2 1.6 50×75 M12 CREZN-1.6kVAC-0.5µF
    1µF 18 0.2 1.6 60×90 M8 CREZN-1.6kVAC-1µF
    2µF 18 0.3 2 60×122 M12 CREZN-1.6kVAC-2µF
    3µF 18 0.5 2.8 60×152 M12 CREZNIIS-1.6kVAC-3µF
    4µF 18 0.7 3 76×122 M12 CREZNIIS-1.6kVAC-4µF
    6µF 18 0.9 3.5 76×152 M12 CREZNIIS-1.6kVAC-6µF
    10µF 18 1.2 4 96×152 M16 CREZNIIS-1.6kVAC-10µF
    UN 2000V AC       UNDC 3000V DC        US 4500V       UBB 3000V AC    UBG 3800V AC
    0.1µF 10 0.2 1.2 50×55 M8 CREZN-2kVAC-0.1µF
    0.22µF 10 0.2 1.6 50×55 M8 CREZN-2kVAC-0.22µF
    0.33µF 10 0.2 1.6 50×75 M8 CREZN-2kVAC-0.33µF
    0.47µF 18 0.2 1.6 50×75 M12 CREZN-2kVAC-0.47µF
    0.5µF 18 0.2 1.6 50×75 M12 CREZN-2kVAC-0.5µF
    1µF 18 0.2 1.6 60×90 M12 CREZN-2kVAC-1µF
    2µF 18 0.3 2 76×122 M12 CREZNIIS-2kVAC-2µF
    3µF 18 0.5 2.8 76×122 M12 CREZNIIS-2kVAC-3µF
    4µF 18 0.7 3 76×152 M12 CREZNIIS-2kVAC-4µF
    6µF 18 0.9 3.5 86×152 M12 CREZNIIS-2kVAC-6µF
    10µF 18 1.2 4 106×152 M16 CREZNIIS-2kVAC-10µF
    UN 2500V AC       UNDC 4000V DC        US 6000V       UBB 3750V AC    UBG 4500V AC
    0.1µF 10 0.2 1.4 60×60 M12 CREZN-2.5kVAC-0.1µF
    0.22µF 10 0.2 1.8 60×60 M12 CREZN-2.5kVAC-0.22µF
    0.33µF 10 0.2 1.8 60×90 M12 CREZN-2.5kVAC-0.33µF
    0.47µF 18 0.2 1.8 60×90 M12 CREZN-2.5kVAC-0.47µF
    0.5µF 18 0.2 1.8 60×90 M12 CREZN-2.5kVAC-0.5µF
    1µF 18 0.2 1.8 60×122 M12 CREZNIIS-2.5kVAC-1µF
    2µF 18 0.4 2.2 76×122 M12 CREZNIIS-2.5kVAC-2µF
    3µF 18 0.6 3 76×152 M12 CREZNIIS-2.5kVAC-3µF
    4µF 18 0.8 3.5 86×152 M16 CREZNIIS-2.5kVAC-4µF
    6µF 18 1 4 106×152 M16 CREZNIIS-2.5kVAC-6µF
    10µF 18 1.5 4.5 116×182 M16 CREZNIIS-2.5kVAC-10µF
    UN 3000V AC       UNDC 4500V DC        US 6750V       UBB 4500V AC    UBG 5200V AC
    0.1µF 18 0.4 1.6 60×60 M12 CREZN-3kVAC-0.1µF
    0.22µF 18 0.6 2 60×60 M12 CREZN-3kVAC-0.22µF
    0.33µF 18 0.6 2 60×60 M12 CREZN-3kVAC-0.33µF
    0.47µF 18 0.6 2 60×90 M12 CREZN-3kVAC-0.47µF
    0.5µF 18 0.6 2 60×122 M12 CREZN-3kVAC-0.5µF
    1µF 18 0.7 2 76×122 M12 CREZNIIS-3kVAC-1µF
    2µF 18 1.5 4 76×152 M12 CREZNIIS-3kVAC-2µF
    3µF 18 1.8 6 96×152 M16 CREZNIIS-3kVAC-3µF
    4µF 18 3.5 8 106×152 M16 CREZNIIS-3kVAC-4µF
    6µF 18 4 12 106×182 M16 CREZNIIS-3kVAC-6µF
    10µF 18 5 14 116×272 M16 CREZNIIS-3kVAC-10µF
    UN 4000V AC       UNDC 5000V DC        US 7500V       UBB 6000V AC    UBG 6600V AC
    0.1µF 18 0.5 1.8 76×122 M12 CREZNIIS-4kVAC-0.1µF
    0.22µF 18 0.7 2.2 76×122 M12 CREZNIIS-4kVAC-0.22µF
    0.33µF 18 0.7 2.2 76×122 M12 CREZNIIS-4kVAC-0.33µF
    0.47µF 18 0.7 2.2 76×122 M12 CREZNIIS-4kVAC-0.47µF
    0.5µF 18 0.7 2.2 76×122 M12 CREZNIIS-4kVAC-0.5µF
    1µF 18 0.8 2.4 86×152 M12 CREZNIIS-4kVAC-1µF
    2µF 18 1.7 5 106×152 M16 CREZNIIS-4kVAC-2µF
    3µF 18 2 7 106×182 M12 CREZNIIS-4kVAC-3µF
    4µF 18 3.7 11 106×272 M16 CREZNIIS-4kVAC-4µF
    UN 5000V AC       UNDC 8000V DC        US 12000V       UBB 7500V AC
    0.1µF 18 1 2 76×122 M12 CREZNIID-5kVAC-0.1µF
    0.22µF 18 1.2 2.5 76×122 M12 CREZNIID-5kVAC-0.22µF
    0.33µF 18 1.2 2.5 76×152 M12 CREZNIID-5kVAC-0.33µF
    0.47µF 18 1.2 2.5 76×152 M12 CREZNIID-5kVAC-0.47µF
    0.5µF 18 1.2 2.5 76×152 M12 CREZNIID-5kVAC-0.5µF
    1µF 18 1.5 4 106×152 M12 CREZNIID-5kVAC-1µF
    2µF 18 2 6 116×182 M16 CREZNIID-5kVAC-2µF
    3µF 18 2.4 9 116×272 M12 CREZNIID-5kVAC-3µF
    UN 6000V AC       UNDC 9000V DC        US 13500V       UBB 8000V AC
    0.1µF 18 1.2 2.5 76×122 M12 CREZNIID-6kVAC-0.1µF
    0.22µF 18 1.5 3 76×152 M12 CREZNIID-6kVAC-0.22µF
    0.33µF 18 1.5 3 76×152 M12 CREZNIID-6kVAC-0.33µF
    0.47µF 18 1.5 3 76×152 M12 CREZNIID-6kVAC-0.47µF
    0.5µF 18 1.5 3 86×152 M12 CREZNIID-6kVAC-0.5µF
    1µF 18 2 6 106×152 M12 CREZNIID-6kVAC-1µF
    2µF 18 3 6 116×202 M16 CREZNIID-6kVAC-2µF
    UN 7000V AC       UNDC 10000V DC        US 15000V       UBB 10500V AC
    0.1µF 18 1.8 4 76×122 M12 CREZNIID-7kVAC-0.1µF
    0.22µF 18 2.2 6 76×152 M12 CREZNIID-7kVAC-0.22µF
    0.33µF 18 2.2 6 86×152 M12 CREZNIID-7kVAC-0.33µF
    0.47µF 18 2.2 6 86×152 M12 CREZNIID-7kVAC-0.47µF
    0.5µF 18 2.2 6 86×152 M12 CREZNIID-7kVAC-0.5µF
    1µF 18 4 12 106×182 M12 CREZNIID-7kVAC-1µF
    2µF 18 6 12 116×272 M16 CREZNIID-7kVAC-2µF
    版2

    FAQ

    Q1. Can I have a sample order for film capacitor?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2. What about the lead time?
    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
    Q3. Do you have any MOQ limit for fim capacitors?
    A: Low MOQ, 1pc for sample checking is available.
    Q4. How to proceed an order for film capacitors?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
    Q5. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
    Q6. Is it OK to print my logo on capacitors?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
    Q7: Do you offer guarantee for the products?
    A: Yes, we offer 7 years warranty to our products.
