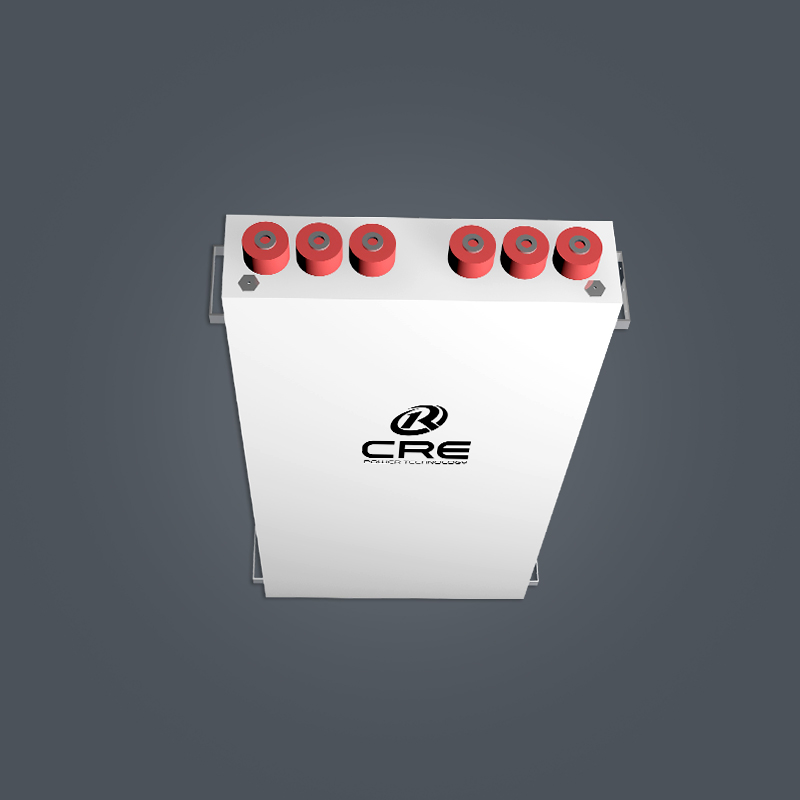

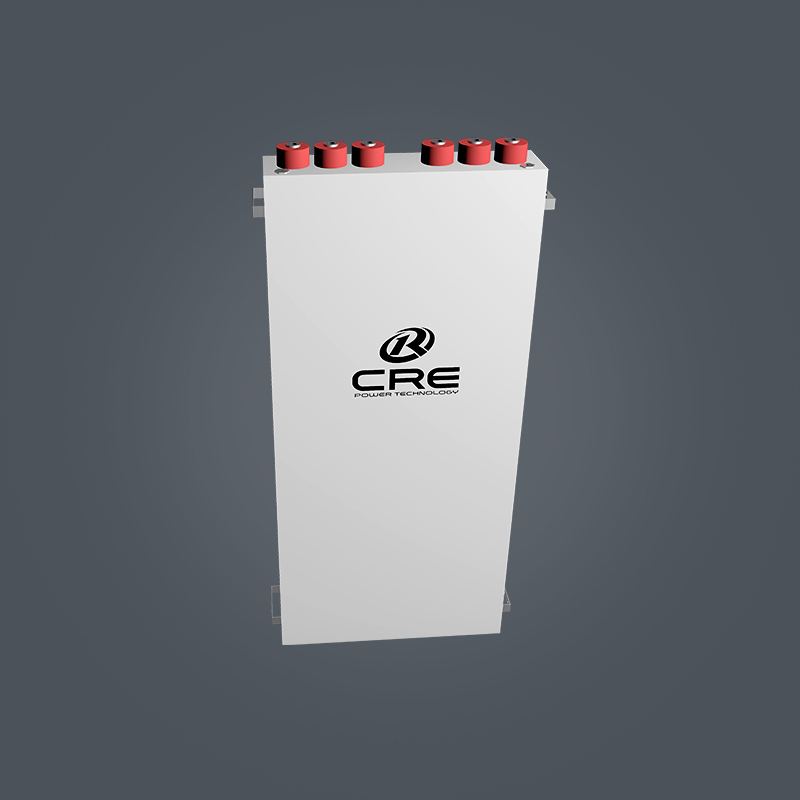

Technical data |
|
||
|
Electrical properties |
|||
|
1 |
Rated capacitance |
7500 μF |
|
|
2 |
Tolerance |
-0% ~＋5% |
|
|
3 |
Rated voltage |
2800V.DC |
|
|
4 |
Rated current (Irms) |
650A |
|
|
790A 12S/day 910A 6S/day |
|||
|
5 |
Series resistance |
≤0.2mΩ |
|
|
6 |
Voltage test between terminals |
4200V.DC/60S |
|
|
7 |
A.C.voltage test terminal/container |
5000V.AC/60S |
|
|
8 |
Tangent of the loss |
<0.0011 100Hz |
|
|
9 |
Partial discharge |
terminal/container:2000VAC,60S Partial discharge:≤10Pc |
|
|
10 |
Maximum surge current |
525KA(5 times) |
|
|
11 |
Maximum peak current |
15KA |
|
|
12 |
Voltage climb rate |
>2V/uS |
|
|
13 |
Self inductance |
≤65nH |
|
|
14 |
Thermal resistance |
0.25K/W |
|
|
15 |
Non-recurrent surge voltage |
Vpp=4200V t<30mS |
|
|
16 |
Ripple voltage |
720V |
|
|
17 |
Operating frequency |
≤2kHz |
|
|
18 |
Discharge resistance |
none |
|
|
Operat ing environment |
|||
|
19 |
Cooling way |
Natural cooling |
|
|
20 |
Maximum operating temperature |
-25~85℃ |
|
|
21 |
Operating ambient temperature |
10~50℃ |
|
|
22 |
Storage temperature |
-25~65℃ |
|
|

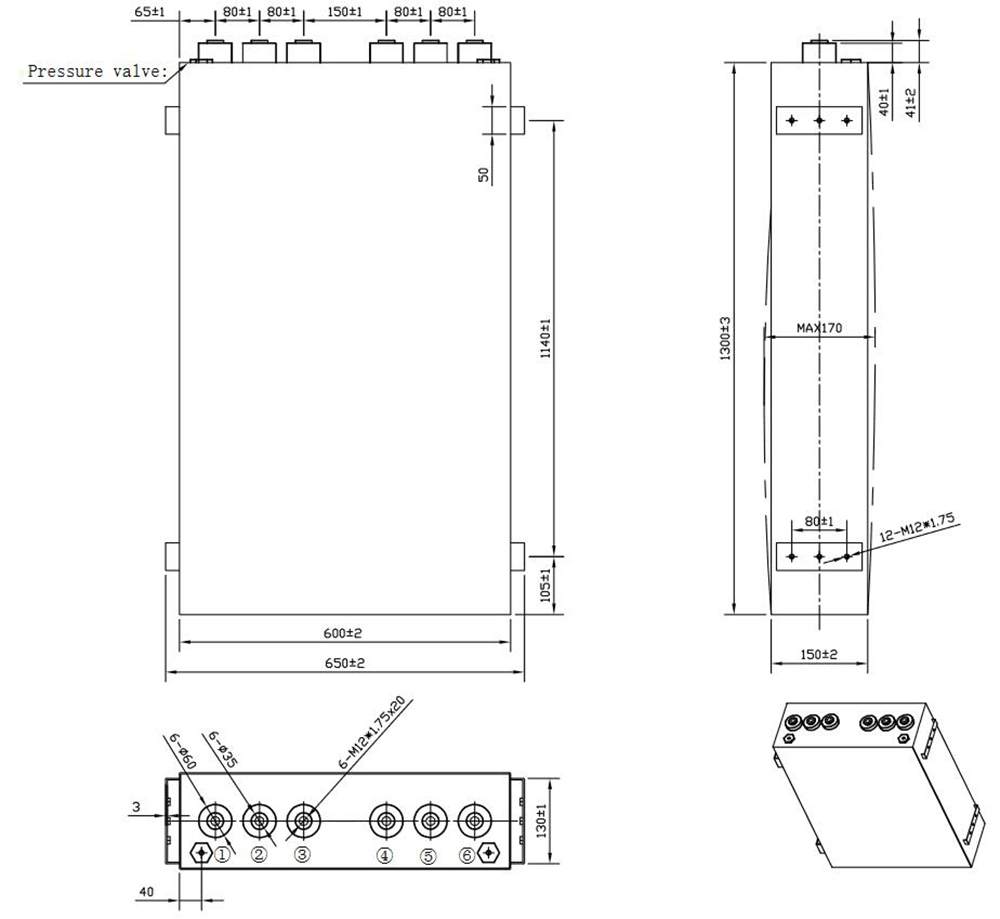

Mechanical parameter |
|||
|
23 |
Packaging form |
Stainless steel |
|
|
24 |
Electrode |
M12 copper nut |
|
|
25 |
Install the pin pitch |
150mm |
|
|
26 |
Electric clearance |
Refer to the GB/T16935 |
|
|
27 |
Creepage distance |
Refer to the GB/T16935 |
|
|
28 |
Terminal tightening torque |
10Nm(Max) |
|
|
29 |
Bottom mounting screw torque |
10Nm(Max) |
|
|
30 |
Undeclared tolerance |
± 1mm |
|
|
31 |
Weight |
≈185Kg |
|
|
Life and Safety |
|||
|
32 |
Service life |
30years @Rated conditions |
|
|
33 |
Failure quota |
<100fit |
|
|
34 |
Flame retardant |
UL 94－V0 |
|
|
Other |
|||
|
35 |
Dielectric materials |
PP |
|
|
36 |
Standards |
IEC 61071 |
|
